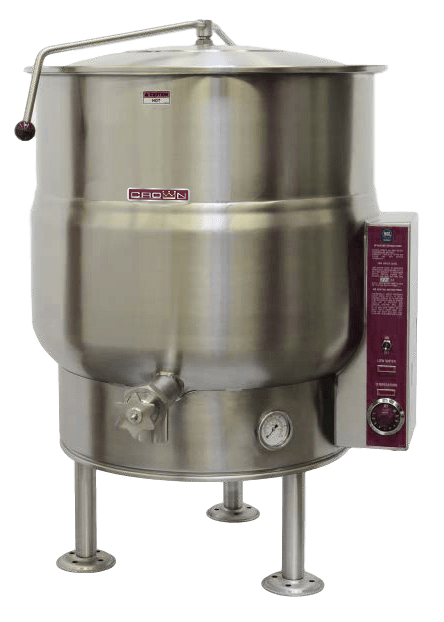

Crown's EL steam kettles are electric, stationary models, ASME Code stamped, National Board registered, c-CSA-us, and NSF certified. These units come in seven sizes, holding 20-100 gallons (76-379 litres). A double-wall interior forms a steam jacket around the lower 2/3 of the kettle.
These units operate from 165° to 285°F (74° to 140°C), are constructed of welded stainless steel (the interior lining is standard 316 for high-acidity cooking), and controls include a power switch, thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut-off. The kettle sits on three stainless steel legs with 4-hole adjustable feet for securing to the floor.
Features
- Electric, self-generating closed steam system
- Capacity options: 20, 25, 30, 40, 60, 80, 100 gallons
- ASME Code, National Board, c-CSA-us, and NSF certified
- Stationary body on three legs
- 2" sanitary draw-off valve
- Spring-assisted hinged stainless steel domed cover
Specs
| Model | Capacity | Dimensions (WDH) | kW | Shipping Weight |
| EL-20 | 20 gal | 21" x 25.25" x 38" | 12 | 196 lb |
| EL-25 | 25 gal | 21" x 25.25" x 37.25" | 12 | 200 lb |
| EL-30 | 30 gal | 24" x 28.25" x 38" | 15 | 226 lb |
| EL-40 | 40 gal | 26" x 30.25" x 38" | 18 | 270 lb |
| EL-60 | 60 gal | 29.5" x 33.75" x 42" | 18 | 390 lb |
| EL-80 | 80 gal | 33" x 37" x 45" | 18 | 445 lb |
| EL-100 | 100 gal | 35.5" x 40" x 48" | 24 | 486 lb |
Dimensions
Width: 23.75" | Depth: 33.25" | Height: 60.5" | Shipping Weight: 196 lbs
Certifications
NSF, cCSAus
