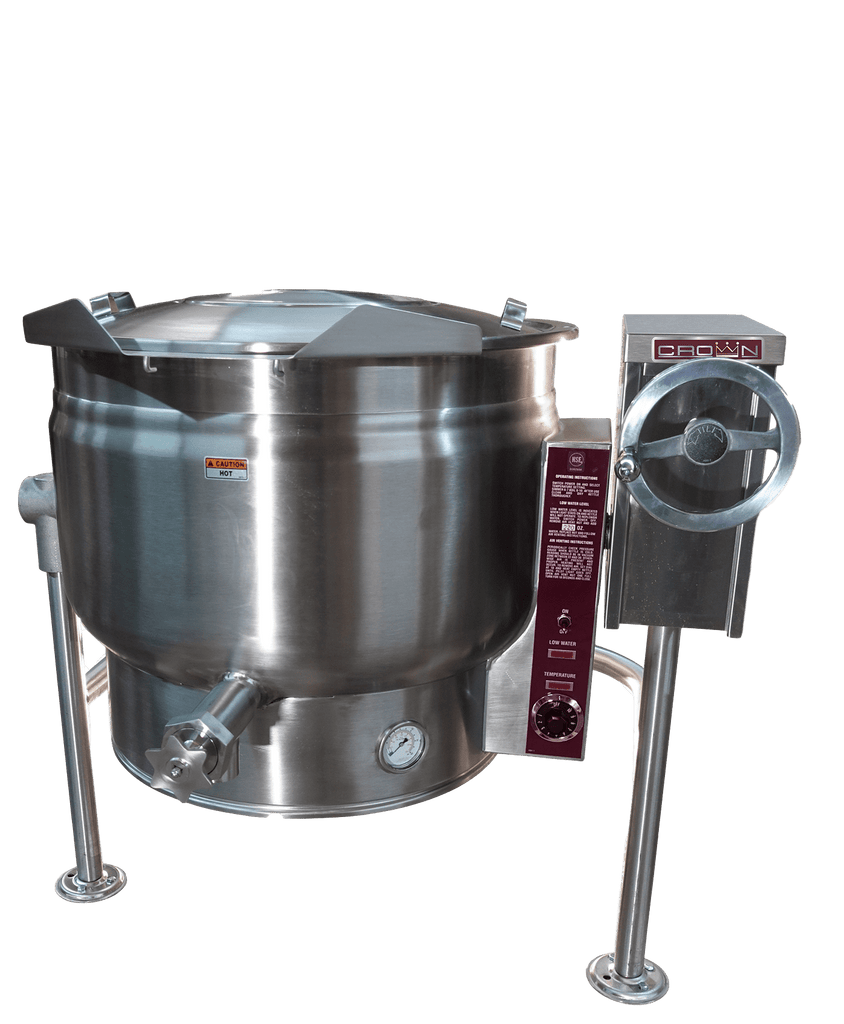

Crown's ELT-F steam kettles are electric, tilting models, ASME Code stamped, National Board registered, c-CSA-us, and NSF certified. These units come in four sizes, holding 20-60 gallons (76-379 litres). A double-wall kettle interior forms a steam jacket around the entirety of the kettle.
These units operate in a temperature range of 165° to 285°F (74° to 140°C), are constructed of welded stainless steel (the interior lining standard 316 for high acid content cooking), and controls include a power switch, thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut-off.
The kettle sits on a frame of stainless steel pipe fitted with four-hole adjustable feet for securing to the floor. The frame allows the kettle to pivot and tilt forward a full 90° for complete emptying.
Features
- Electric, self-generating closed steam system
- Capacity options: 20, 25, 30, 40, 60, 80, 100 gallons
- ASME Code, National Board, c-CSA-us, and NSF certified
- Stationary body on three legs
- 2" sanitary draw-off valve
- Spring-assisted hinged stainless steel domed cover
Specs
| Model | Capacity | Dimensions (WDH) | Shipping Weight |
| ELT-20F | 20 gal | 40.38" x 33.38" x 31.25" | 340 lb |
| ELT-30F | 30 gal | 43.88" x 37.63" x 33.5" | 402 lb |
| ELT-40F | 40 gal | 47.13" x 40.88" x 36.25" | 500 lb |
| ELT-60F | 60 gal | 50" x 43.13" x 39.25" | 610 lb |
Dimensions
Width: 44.5" | Depth: 41.75" | Height: 42" | Shipping Weight: 610 lbs
Certifications
NSF, cCSAus
