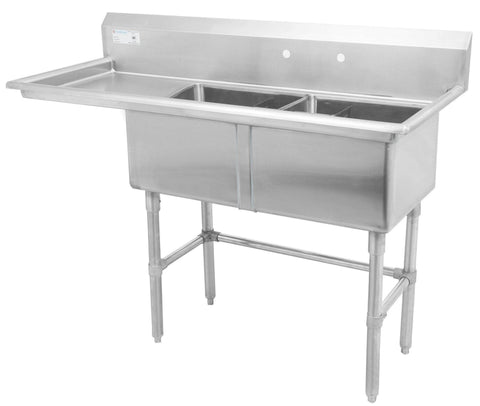

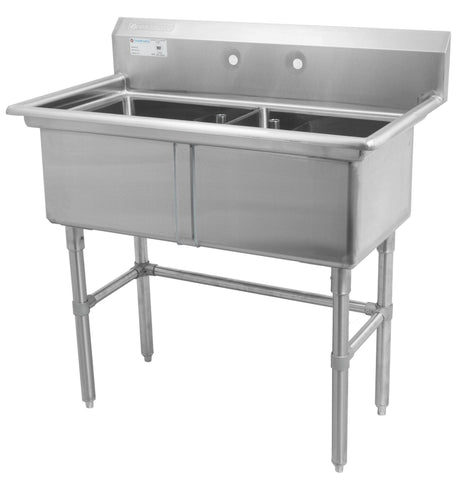

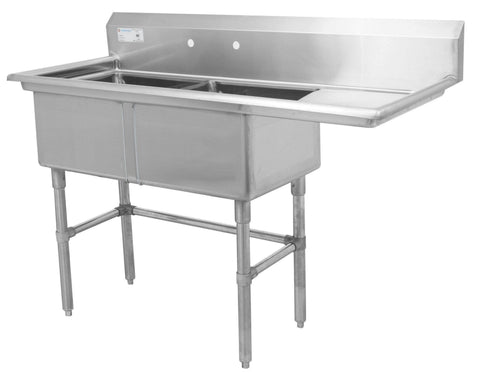

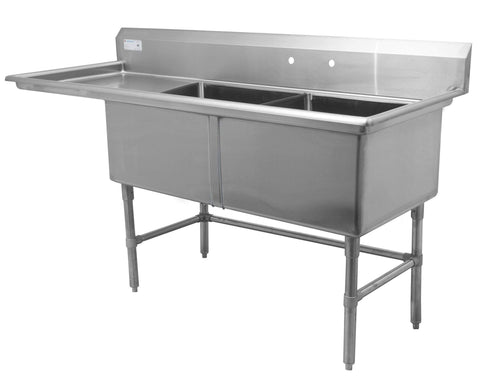

With this Thorinox stainless steel sink, you can choose to have no drainboards, have a drainboard on either the right or the left, or have a drainboard on both sides.
- 18 gauge 304 stainless steel
- Stainless steel legs, braces, and bulletfeet
- Faucet hole at 8" from centre
- 8" faucet width
- 6.5" backsplash with 45 degree return
- NSF approved
SPECS
| Model | Compartment (WDH) | Drainboard | Specs |
| TDS-1818-0 | 18" x 18" x 11" | None | |
| TDS-1818-L18 | 18" x 18" x 11" | Left | |
| TDS-1818-R18 | 18" x 18" x 11" | Right | |
| TDS-1818-RL18 | 18" x 18" x 11" | Both | |
| TDS-2424-0 | 24" x 24" x 14" | None | |
| TDS-2424-L24 | 24" x 24" x 14" | Left | |
| TDS-2424-R24 | 24" x 24" x 14" | Right | |
| TDS-2424-RL24 | 24" x 24" x 14" | Both |
COMPARTMENT SIZES
The options for the different compartment sizes work like this: The first dimension is from left to right (width), the second dimension is from front to back (depth), and the third dimension is from top to bottom (height).
So for example, a 18" x 18" x 11" compartment would be 18" wide, 18" deep, and 14" high.

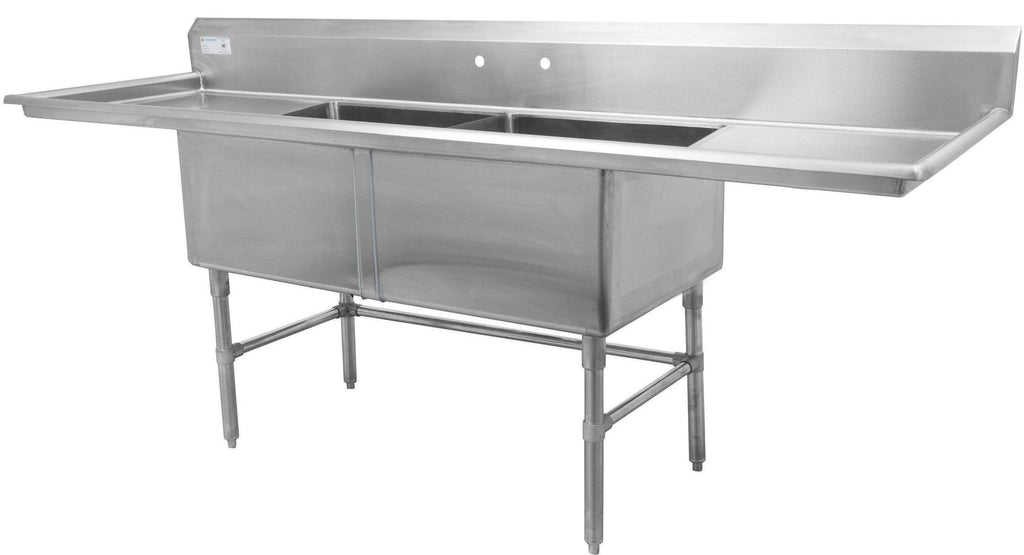

Specifications: Sink, two compartment, 96"W x 29-1/2"D x 36-1/2"H, 18/304 stainless steel construction, 24" x 24" x 14" deep bowls, 24" drainboards on left & right, 6-1/2"H backsplash with 45° return, 8" O.C splash mount faucet, curved corners & rolled edges, drain, overflow & wall brackets included, adjustable stainless steel legs, braces & bullet feet, CUPC, NSF, CSA
Dimensions
Width: 96" | Depth: 29.5" | Height: 36.5"
Certifications
NSF, CSA
